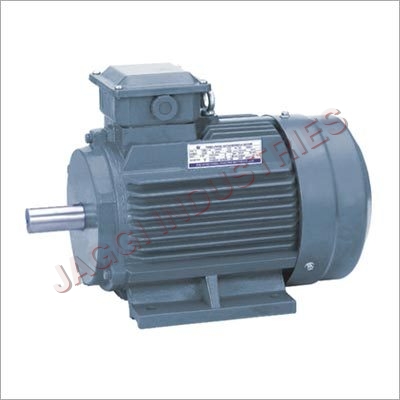

AC Induction Motors

Name: AC Induction Motors
Brand: JAGGI INDUSTRIES
Price: 7000 INR
Availability: InStock

Price 7000 INR/ Piece

Get a Price/Quote

MOQ : 100 Pieces

AC Induction Motors Specification

Sealed Type
TEFC (Totally Enclosed Fan Cooled)

Noise Level
<70 dB

Cooling Method
Fan Cooled

Voltage
240 Volt (v)

Rated Voltage
220V, 415V

Starting Type
Direct-On-Line, Star-Delta

Torque
High Starting Torque

Current Type
AC

Poles Number
2, 4, 6

Power Rating
0.75 kW - 150 kW

Ambient Temperature
-15C to 40C

Motor Type
AC Induction Motor

Standard
IEC / IS

Bearing Type
Deep Groove Ball Bearing

Efficacy
IE2 / IE3

Rated Frequency
50 Hz

Horse Power
1 - 200 HP

Features
High efficiency, robust design, low maintenance

Product Type
Electric Motor

Output Power
1-200 Hp

Protect Feature
Totally Enclosed Fan Cooled (TEFC)

Phase
Single Phase

Speed
1440-2880 RPM

Power
0.75 kW - 150 kW

Color
Blue, Grey

Dimension (L*W*H)
Variable / As per HP

Weight
Variable

Warranty
1 Year

Shaft Diameter
As per motor rating

Mounting Type
Foot / Flange Mounting

IP Rating
IP55

Connection Type
Star / Delta

Insulation Class
Class F

Service Factor
1.0 - 1.15

Frame Size
63 to 355

Temperature Rise
As per IS standards

Enclosure Material
Cast Iron / Aluminium

Application
Industrial Machinery, Pumps, Fans, Compressors, Conveyors

Vibration Level
Within permissible limits as per IS: 12075

Duty Cycle
S1 Continuous

AC Induction Motors Trade Information

Minimum Order Quantity
100 Pieces

Supply Ability
50 Pieces Per Day

Delivery Time
7-8 Days

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Main Domestic Market
All India

About AC Induction Motors

AC Induction Motors

Owing to our in-depth knowledge in the respective domain, we are presenting optimum quality AC Induction Motor. This motor is used in water treatment plant & irrigation and other related applications in order to fulfill the need of the clients. The offered motor is available in different capacities and specifications. Our offered AC Induction Motor is tested by a team of quality controllers in order to ensure optimum functionality.

These Motors are built with robust construction and are ideally suited to perform in difficult operating conditions. The motors are tested against torque and speed in order to ensure superior performance. These products are highly appreciated for their effectual performance and longer life span and find application in Agricultural, Household and various Industrial sectors.

Salient Features:

Noise free operation
Modular construction
Better Efficiency
Corrosion resistant paint
Trouble free service
High reliability
Applications:

Sugarcane Crushers
Compressors
Machine Tools
Textile Machinery
Flour Mills
Gear Box Drives
Technical Specifications:

Particulars

(Single Phase)

(Three Phase)

Power Range

0.5 HP to 5.0 HP

1.0 HP to 15.0 HP

Supply

240 V, 50 Hz

415 V, 50 Hz

Speed

1400 rpm

1400 rpm

Insulation

A/B

A/B/F

Mounting

Foot Mounted

Foot Mounted

Note: Due to continuous efforts in improvements, information furnished above is subject to change without notice.

Engineered for Industrial Durability

Built with premium cast iron or aluminium enclosures, these motors withstand demanding industrial conditions. Their IP55 rating and Class F insulation guarantee reliable operation over a wide temperature range. Benefit from long-lasting performance, minimal maintenance, and robust mechanical strength, making them ideal for factories, plant equipment, and process industries.

Versatile Applications and Mounting Options

Adaptable across pumps, fans, conveyors, and compressors, our AC Induction Motors suit varied industrial needs. They're available in both foot and flange mounting styles, accommodating diverse machinery layouts. Quiet, efficient, and powerful, these motors optimize productivity and energy savings in your operations while ensuring high starting torque and smooth function every cycle.

FAQ's of AC Induction Motors:

Q: How are these AC induction motors typically used in industrial settings?

A: These motors are commonly employed in industrial machinery like pumps, fans, compressors, and conveyors. Their continuous duty capability (S1) and high starting torque make them ideal for operations requiring consistent, reliable power delivery over extended periods.

Q: What insulation class and protection features do these motors offer?

A: The motors use Class F insulation, providing excellent thermal endurance. Additionally, they are totally enclosed fan cooled (TEFC) and rated IP55, safeguarding against dust and water ingress for enhanced operational safety and longevity.

Q: When should I choose star or delta connection for these motors?

A: Star connections are generally used during motor startup to limit inrush current, while delta connections are used for running conditions to deliver full power. Motors capable of star-delta starting are ideal for applications that require high starting torque with controlled current draw.

Q: Where are these motors manufactured and supplied from?

A: These motors are manufactured, supplied, and exported from India, ensuring compliance with internationally recognized IEC and IS standards to meet the requirements of global industrial markets.

Q: What is the process for installing and starting these motors?

A: Installation involves securely mounting the motor (foot or flange type) and ensuring proper electrical connections (single-phase/three-phase, star/delta as specified). Starting can be direct-on-line or via star-delta switches, depending on your application and power requirements.

Q: What are the main benefits of using these AC induction motors?

A: Key benefits include high efficiency (IE2/IE3), robust design, reduced noise and vibration levels, minimal maintenance, and reliable operation in challenging environments. This leads to energy savings, longer service life, and lower total cost of ownership.
