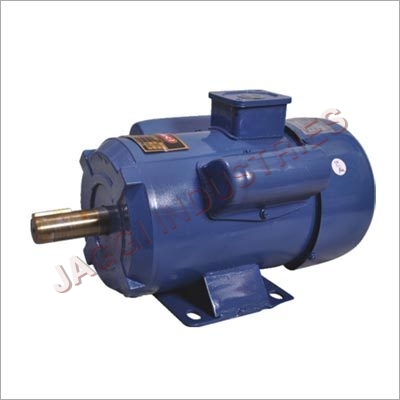

Sheet Body Electric Motors

Name: Sheet Body Electric Motors
Brand: JAGGI INDUSTRIES
Price: 7000 INR
Availability: InStock

Price 7000 INR/ Piece

Get a Price/Quote

MOQ : 100 Pieces

Sheet Body Electric Motors Specification

Cooling Method
Air Cooled

Power Rating
0.25 HP to 2 HP

Rated Frequency
50 Hz

Standard
IS: 996 / ISO Standard

Bearing Type
Double Ball Bearing

Ambient Temperature
-15C to 50C

Current Type
AC

Horse Power
0.25 HP to 2 HP

Features
Light Weight, Durable, Energy Efficient

Pressure
Standard

Efficacy
High Efficiency

Rated Voltage
220 V / 415 V

Torque
Nominal Torque, model based

Poles Number
2, 4

Noise Level
Low

Sealed Type
Sealed

Motor Type
Sheet Body Induction Motor

Voltage
240 Volt (v)

Starting Type
Direct On Line

Product Type
Other

Output Power
0.25 HP to 2 HP

Frequency (MHz)
50 Hz

Protect Feature
Totally Enclosed Fan Cooled (TEFC)

Phase
Single Phase

Speed
1440 RPM

Power
0.5 to 5.0 Horsepower (HP)

Color
Blue

Dimension (L*W*H)
According to Model

Weight
8 kg - 25 kg

Warranty
1 Year

Shaft Diameter
Standard, model based

Mounting Type
Foot Mounted

IP Rating
ip44

Duty Cycle
S1 Continuous Duty

Insulation Class
Class B / F

Cooling Fan
Provided

Application
Pumps, Compressors, Machine Tools, Textile Machinery

Rotation Direction
Clockwise / Anti-clockwise

Body Material
Sheet Metal Housing

Finishing
Anti-Corrosive Paint

Winding
Copper Wound Coils

Installation
Horizontal

Rotor Type
Die Cast Aluminium Rotor

Sheet Body Electric Motors Trade Information

Minimum Order Quantity
100 Pieces

Supply Ability
50 Pieces Per Day

Delivery Time
7-8 Days

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Main Domestic Market
All India

About Sheet Body Electric Motors

Electric Motors (Sheet Body)

Supported by a team of qualified professionals, we are dedicated towards offering our clients optimum quality Electric Motors. These motors are available in different capacities to meet the specific needs of the clients. Our presented pumps are widely used in different households and industrial applications for different types of water suction related needs. The offered Electric Motors are tested on well-defined parameters in order to make sure that we are delivering only flawless range at client's end.

These Motors are built with robust construction and are ideally suited to perform in difficult operating conditions. The motors are tested against torque and speed in order to ensure superior performance. These products are highly appreciated for their effectual performance and longer life span and find application in Agricultural, Household and various Industrial sectors.

Salient Features:

Totally Enclosed Fan Cooled (TEFC) AC Induction Motor
Reliable & Efficient Performance
Equipped with thermal overload protector (TOP) to avoid coil burn out
Highly Durable
Trouble free service

Applications:

Compressors
Material Handling Equipment
Diamond Cutting & Conveyors
Pumps & Blowers
Flour Mills
Industrial machines

Technical Specification:

Particulars	(Single Phase)	(Three Phase)
Power Range	0.5 HP to 5.0 HP	1.0 HP to 15.0 HP
Supply	240 V, 50 Hz	415 V, 50 Hz
Speed	1400 rpm	1400 rpm
Insulation	A/B	A/B/F
Mounting	Foot Mounted	Foot Mounted

Note: Due to continuous efforts in improvements, information furnished above is subject to change without notice.

Engineered for Performance and Versatility

These Sheet Body Electric Motors are ideal for continuous, demanding operation across a range of installations. With S1 duty cycle and IP44 ingress protection, they are designed to maintain optimal performance in pumps, compressors, textile machinery, and beyond. The foot-mounted, air-cooled design allows for easy horizontal installation and adaptability in industrial settings.

Constructed for Reliability and Safety

With a sealed, sheet metal body finished in anti-corrosive blue paint, these motors offer enhanced protection against harsh working conditions. Double ball bearings, Class B/F insulation, and TEFC protection contribute to a long service life, while the low-noise operation and lightweight build make them suitable for environments where both reliability and comfort are priorities.

FAQ's of Sheet Body Electric Motors:

Q: How are Sheet Body Electric Motors installed and what mounting options are available?

A: These motors are designed for horizontal installation using foot mounting, ensuring secure and stable placement across diverse industrial settings such as pumps, compressors, and machine tools.

Q: What benefits does the anti-corrosive paint and sheet metal housing offer?

A: The anti-corrosive paint paired with the durable sheet metal housing provides excellent resistance to rust, making these motors suitable for humid, dusty, or chemical-prone environments and prolonging their operational life.

Q: When should these motors be used, and which applications are best suited?

A: These motors, with their continuous S1 duty rating, are ideal for continuous-use applications including pumps, compressors, textile machinery, and machine tools, where consistent and reliable operation is required.

Q: What are the key efficiency and safety features of these motors?

A: Built with high-quality copper windings and die-cast aluminium rotors, these motors maximize energy efficiency. The TEFC (Totally Enclosed Fan Cooled) protection and IP44 rating safeguard the units from dust and water ingress, enhancing both performance and worker safety.

Q: Where are these Sheet Body Electric Motors manufactured and exported from?

A: These motors are manufactured, supplied, and exported from India by established and certified manufacturers, conforming to national and international IS:996 and ISO standards.

Q: How does the cooling system work and what is the impact on performance?

A: Each motor incorporates an air-cooled system with an integrated cooling fan, efficiently dissipating heat during operation. This not only maintains optimal internal temperatures but also significantly extends the motor's working life and sustains performance during continuous use.
